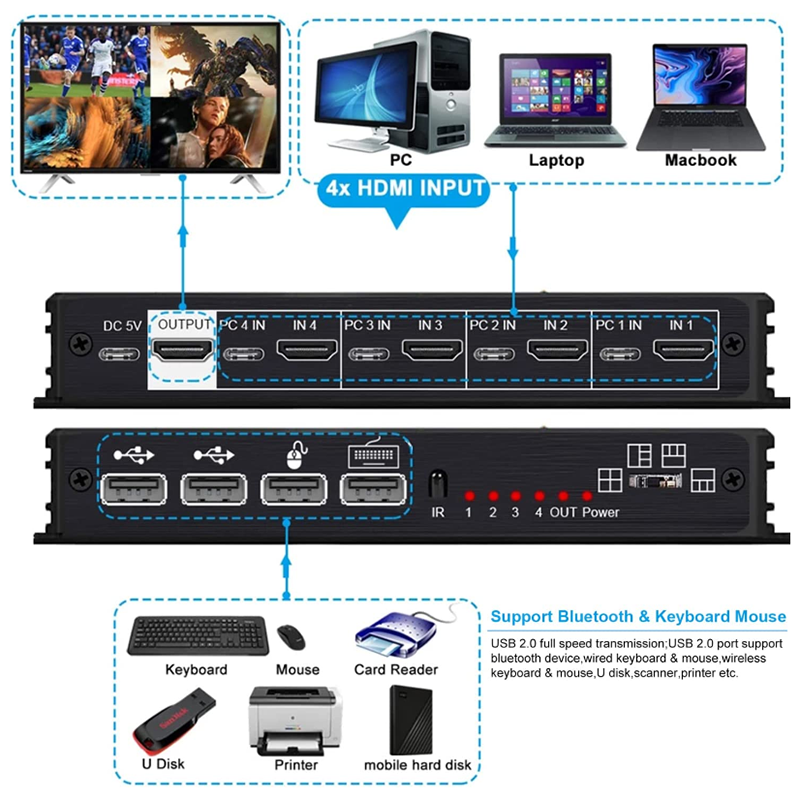

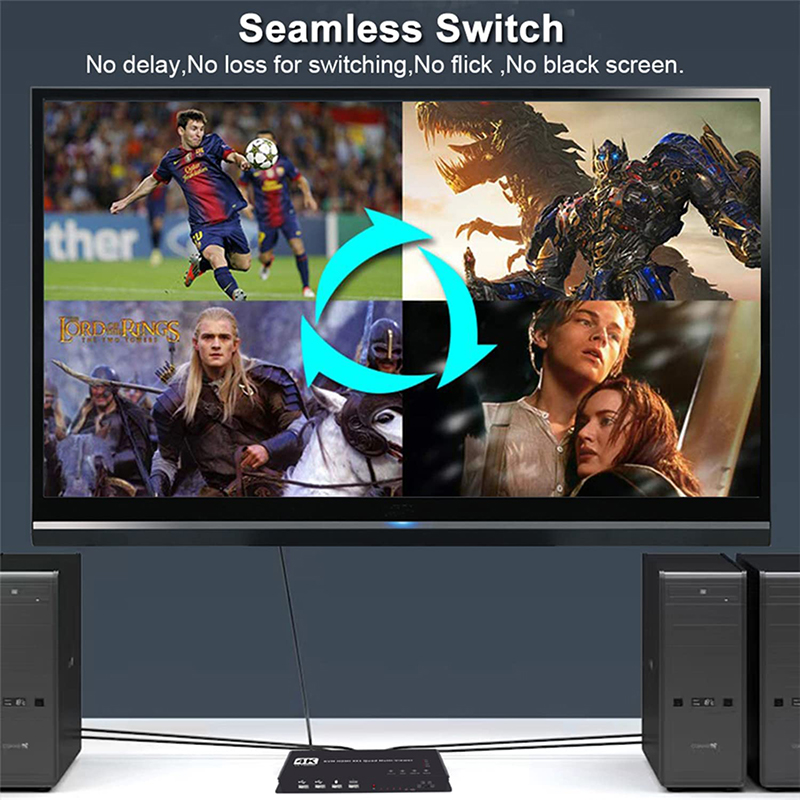

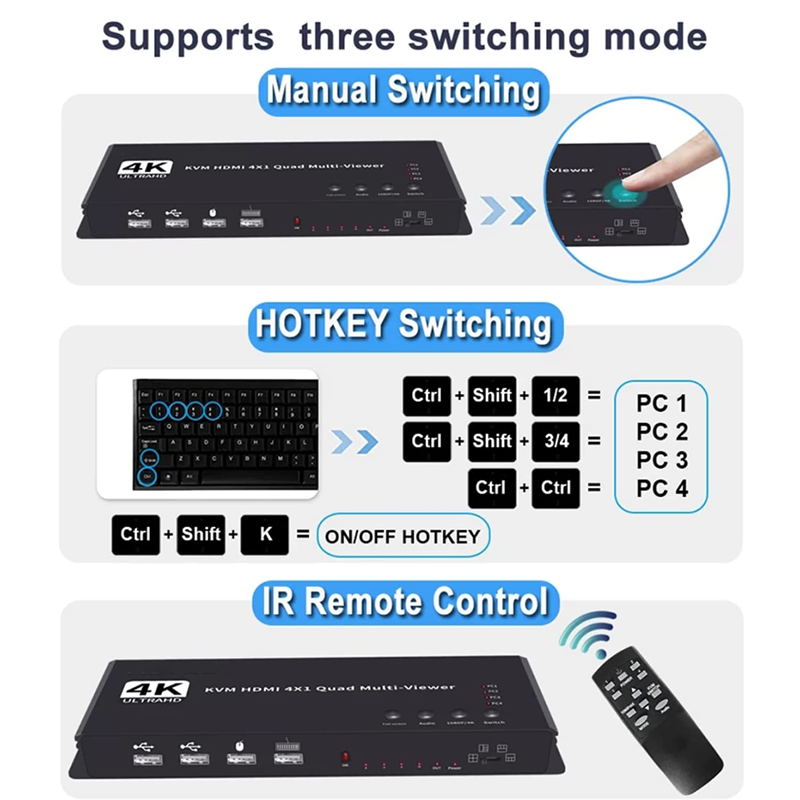

| Introduction: 1. HD 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch. 2. It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signal synchronously. 3. The control methods of the switch is flexible, it can be switched via button and IR control. 4. It’s a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places. [HDMI 4x1 Quad Multi-Viewer]: HDMI 1080P @ 60Hz, 3D, HDMI 1.4 compatible with multiple resolutions, supports HDMI 1.3a. HDCP1.2, input compatible with DV1.0 version. The audio output format is compatible with PCM2.0 [Stable transmission]: Built-in chip, stable transmission, stable performance, good heat dissipation and effective protection of split screen work. Metal shell, wear resistance, strong anti-interference. [A variety of switching modes]: 4 HD inputs, 1 HDM output, 4 screen divisions, 4 types of switching without screen, supports 5 video switching modes (see Figure 2); supports infrared remote control; supports audio and video modes Change. [Applicable equipment]:Suitable for HDMI input devices, computers, decoders, DVD players, PS4, smart boxes; for HDMI output devices, televisions, monitors, projectors; Widely used in multi-user videoconferencing systems, monitoring, live games, each Great shopping mall |
| Features: Support 4 HD input, 1 HD output Support 4 channels HD signal screen segmentation Support 4 channels HD signal seamless switching Support highest resolution up to 1080P/60Hz Support IR control Compatible HD 1.3a, HDCP1.2, input compatible DVI1.0 version Support resolution: 1080P,720P,1080i,1024X768,1360X768 and so on Support audio output format: PCM2 Support standard AWG26 cable, input up to 15 metres ,output up to 15 metres DC12V/1A power adapter Net weight: 460g Dimension (L x W x H): 200mm*93mm*20mm |

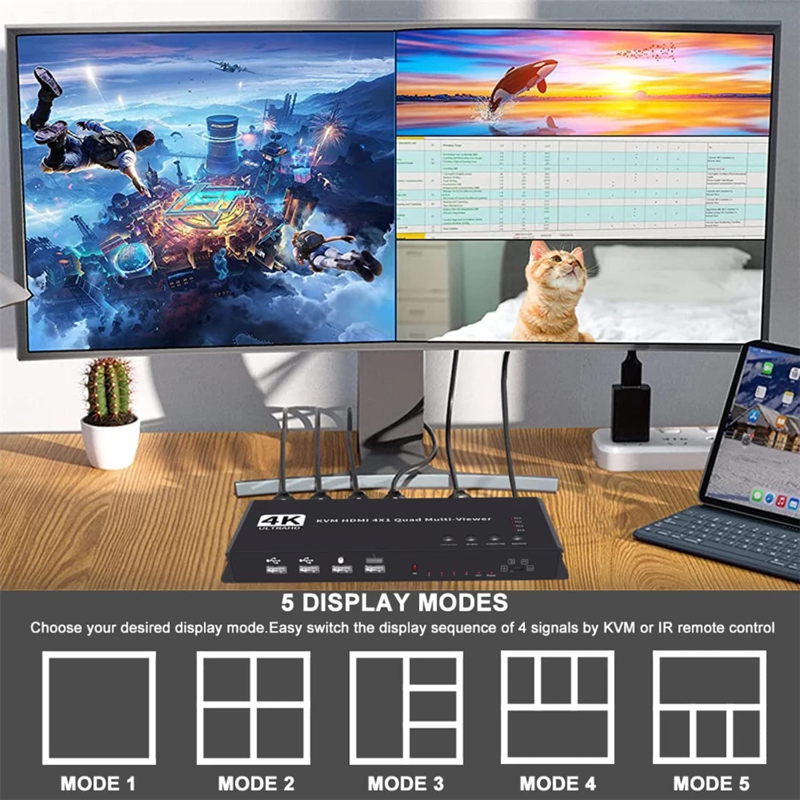

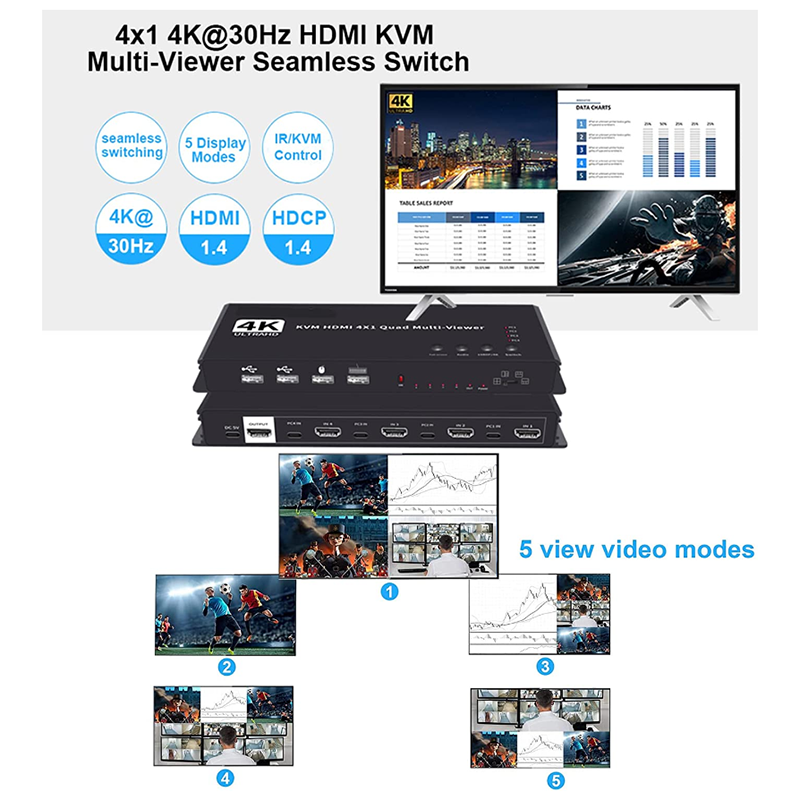

| Specifications: Maximum Single Link Range:1080P/60Hz HD input resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p HD output resolution:720p/1080p/60Hz Supports video color format:24bit/deep color 30bit, 36bit Vertical Frequency Range:720/1080p@60Hz Max bandwidth:225MHz Max bandrate:6.7Gbps 1080P Input/Output cable distance:15m AWG26 HD standard cable Max working current: DC12V / 1A Fives modes for switching: MODE1: Switching IN1-IN4, to choose the audio output MODE2: Switching IN1-IN4, the audio output is the same as the audio of the main interface. MODE3: IN1-IN4, the4 channels HD signal seamless switching MODE4: Switching IN1-IN4 to HDMI Screen MODE5: Double screen |
